If you've been shopping for lithium batteries lately — or watching YouTube videos from anglers sponsored by lithium companies — you've probably heard claims like "16 volt gives you better sonar imagery" or "more voltage equals more transmit power" or my personal favorite, "I can see fish I couldn't see before after switching to 16V."
No. Higher voltage does not improve your sonar image quality. At all.
I'm not saying this as someone who doesn't run lithium — I run three LiFePO4 batteries on my trolling motor and a dedicated 100Ah lithium just for electronics. I'm saying this as someone who actually understands how these electronics work from an engineering perspective.
The claims about 16V improving sonar performance are mostly marketing, not science. But here's the thing: lithium batteries and dedicated wiring ARE worth considering for legitimate reasons. The problem is that the actual benefits get buried under myths that don't hold up to basic electrical engineering scrutiny.
Let's break this down three ways: the quick answer for when you're at the ramp and some guy is telling you his LiveScope "pops" more on 16 volts, the real explanation for what's actually happening inside your fish finder, and the hardcore science with manufacturer specs and technical documentation for everyone who needs proof.
Section 1: The Quick Answer (For When You're at the Ramp)
Question: Will 16 volt power give me better sonar images than 12 volt?
Answer: No. Your sonar will produce identical images on 12V or 16V.
Here's the deal in plain English: Your Lowrance, Garmin, or Humminbird doesn't care whether you feed it 12 volts or 16 volts. Inside every one of these units is a sophisticated power regulation system — called a switch-mode power supply, or SMPS — that converts whatever voltage you provide (within the manufacturer's specified range) down to the exact internal voltages the electronics need (Analog Devices, AN-140).
Your display? It runs on regulated low-voltage rails internally — whether your battery is at 12V or 16V.
Your processor? Modern ARM-based processors run on core voltages typically between 0.9V and 1.4V, with I/O rails at 3.3V (ARM Cortex Technical Reference) — whether your battery is at 12V or 16V.
Your transducer driver circuit? It generates its own high-voltage pulses — typically 100V or more — using internal step-up transformers and storage capacitors (EE Times, Humminbird Teardown). That transmit pulse voltage is completely independent of your battery voltage.
The voltage you feed the unit is just raw material. The unit takes what it needs and regulates everything internally. Feeding it 16V instead of 12V is like overfilling your truck's gas tank expecting it to drive faster — the engine only burns what it needs, and the extra just sits there doing nothing.
That said, an overfilled tank can compensate for a leaky fuel line. If you're losing fuel along the way, starting with more means you still arrive with enough. That's the one semi-legitimate argument for 16V: it can mask voltage drop from undersized wires, long runs, or corroded connections. If you start with 16V and lose 2V across bad wiring, you still arrive at 14V — plenty for your electronics. Start with 12V and lose that same 2V, and you're at 10V — below spec and causing problems.
But here's the thing: the real fix is to repair the fuel line, not keep overfilling the tank. Run proper gauge wire, clean your connections, and a 12V system works perfectly. The ABYC E-11 marine wiring standard specifies a maximum 3% voltage drop for critical circuits like electronics — on a 12V system that's only 0.36V, easily achievable with correct wire gauge and clean connections. Using 16V to overcome bad wiring is an expensive bandage.
But Wait, My Sonar Really Does Look Better After Switching to 16V Lithium!
I believe you. But here's what likely happened:
You isolated your electronics from your pumps and other accessories. Most anglers run electronics off their starting battery — the same battery powering livewells, bilge pumps, aerators, and navigation lights. All of those motors and pumps generate electrical noise. When you switched to a dedicated 16V lithium just for electronics, you eliminated that shared circuit — likely installing a dedicated wiring harness to your electronics in the process. If you previously ran off the trolling motor bank (less common, but some do), you also eliminated the substantial electromagnetic interference (EMI) from the trolling motor. Brushed DC motors produce broadband RF noise spanning from hundreds of hertz into hundreds of megahertz due to brush arcing and commutation (Rocket City Outdoors; Portescap, DC Motors EMC). That EMI couples into your electronics wiring and can degrade image quality. Either way, THAT'S what was degrading your image. The isolation fixed it, not the voltage.
You eliminated voltage sag. If you were running AGM or lead-acid batteries that sagged to 10.5V under load, your electronics were operating at the ragged edge of their minimum spec. Now they have stable power. Again — it's the stability, not the 16V specifically, that helped.
You upgraded your entire electrical system. New battery, new wiring, new connections. Old corroded connections and undersized wiring cause voltage drops and noise. You fixed those problems during installation — you repaired the "fuel line," and that's what made the difference.
Placebo effect. You spent $400+ on a battery. Your brain wants to see improvement. This is human nature, not an insult.
The Bottom Line for Section 1
If someone at the ramp tells you their LiveScope is sharper because of 16V, they're experiencing one of the effects above — not a magical voltage improvement. Your sonar's display quality is determined by internal circuits running on internally-regulated voltages that have nothing to do with whether your battery says 12V or 16V on the label.
Want to understand WHY this is true? Keep reading. Want peer-reviewed proof and manufacturer specs? Skip to Section 3.
Section 2: The Real Explanation (Why Voltage Doesn't Matter — But Clean Power Does)
Let's get into how your fish finder actually works. This isn't boring theory — this is the stuff that will help you troubleshoot real problems and avoid wasting money on solutions that don't address the actual issue.
How Your Fish Finder Regulates Power
Every modern marine electronics unit uses switch-mode power supplies (SMPS) to convert incoming battery voltage to stable internal voltages. This is the same technology in your laptop charger, phone charger, and basically every modern electronic device (Wikipedia, SMPS).
Here's what happens when you connect power:
- Battery voltage enters the unit (could be 10V, 12V, 16V, 24V — whatever's within spec)
- SMPS circuits regulate this input to fixed internal rails. Typical voltage rails in embedded electronics include:
- 0.9–1.4V for modern ARM processor cores (ARM Cortex Technical Reference)
- 3.3V for memory and I/O
- Various regulated rails for display and backlight circuits
- These internal voltages are CONSTANT regardless of input voltage. The SMPS adjusts its duty cycle — the ratio of on-time to off-time in its switching circuit — to maintain stable output as input voltage varies (Analog Devices, AN-140).
The Physics. Your fish finder is approximately a constant-power load. It draws a specific wattage regardless of input voltage. Because Power = Voltage x Current (P=V*I), when you increase the input voltage, the current draw actually decreases to maintain the same wattage. A unit drawing 24W at 12V (2 amps) will draw only 1.5 amps at 16V — same power consumption, same internal operation, same sonar performance.
The key insight: Your processor doesn't know or care what voltage your battery is. It sees the same regulated core voltage it was designed for, every single time.
How Transducer Transmit Power Actually Works
This is where the "more voltage = more transmit power" myth completely falls apart.
Your sonar's transmit power — measured in watts RMS — is NOT determined by your battery voltage. Inside your fish finder, the regulated internal DC voltage feeds a step-up transformer and storage capacitor circuit that generates the high-voltage pulses needed to drive the piezoelectric transducer element (EE Times, Humminbird Teardown). An EE Times teardown of a Humminbird unit revealed the internal transmit architecture: "a semi-sinusoidal pulsed signal is boosted by a push-pull amplifier, sizable storage capacitor and step-up transformer" to produce transmit bursts of several hundred watts RMS.
The transmit power is determined by the transformer design, the capacitor size, and the MOSFET driver circuit — all fixed components designed during manufacturing. Whether your battery provides 12V or 16V, the internal bus voltage is regulated, and the transformer output is designed to deliver a specific transmit power.
Dedicated ultrasonic driver ICs used in modern sonar systems — such as the Microchip HV732 series — generate pulses up to +/-100V from regulated internal rails (Microchip HV732 Datasheet). The input battery voltage is irrelevant to these output levels.
Manufacturer Voltage Specifications
Here's what the manufacturers actually spec for input voltage. Notice that none of them claim performance varies within the range — they specify an operating window, and the unit performs identically anywhere within it.
Lowrance
- HDS Live/Pro: 10.8–17V
- ActiveTarget/ActiveTarget 2: 10.8–31.2V
Garmin
- ECHOMAP Ultra: 9–18V
- LiveScope GLS 10: 10–32V, 500W transmit power, 21W typical / 58W max consumption
Humminbird
- Helix/SOLIX/APEX (head units): 10.8–20V
- MEGA Live Imaging: 12 VDC only — Humminbird explicitly states it "MUST be connected to a 12 VDC power supply" and warns against connecting to 24V or 36V systems. This applies to both the original MEGA Live and the MEGA Live 2.
- MEGA 360 Imaging: 12 VDC — powered via its own dedicated cable from a 12V source, 1A slow-blow fuse required.
Important distinction: The Humminbird head units (Helix, SOLIX, APEX) accept 10.8–20V, but the imaging accessories (MEGA Live, MEGA 360) are 12V-only devices. If you're running a 16V system, verify compatibility with your specific accessories before connecting them.
Furuno (commercial marine manufacturer) sums it up plainly: fish finders operating on 12–24V DC "function properly anywhere within that range" with no performance variation based on input voltage level.
Notice anything? No manufacturer claims improved performance at higher voltage. They specify a range, and the unit performs identically anywhere within that range. The wide ranges on live sonar modules (up to 32V) exist to accommodate 24V boat systems, not because more voltage helps.
What ACTUALLY Affects Your Sonar Image Quality
Now let's talk about what genuinely matters — because if you're chasing better sonar performance, you should focus here instead of battery voltage. Voltage is just one variable in the equation, and frankly, it's one of the least important ones as long as you're within spec.
1. Transducer Installation (The Factor That Actually Matters Most)
Here's the truth nobody selling batteries wants you to hear: transducer installation has more impact on sonar performance than every other factor on this list combined. You could have the cleanest power system in the world, and a poorly installed transducer will still give you garbage images.
Mounting Location:
- Transom mount: Must be positioned where water flows smoothly off the hull — typically 3–6" from the engine's lower unit and not inline with strakes.
- Trolling motor mount: Forward-facing sonar typically mounts here and the angle of the transducer matters. Follow your manufacturer's specs.
- Shoot-through-hull: Works only on solid fiberglass (no wood core, no foam). You will lose some signal strength depending on hull thickness — Airmar publishes signal-loss-vs-thickness charts for their in-hull transducers, though purpose-built in-hull models are designed to compensate. This approach works well for higher-speed 2D sonar.
Level and Angle. Your transducer face must be parallel to the water surface at running speed — not at rest. For Side Imaging and MEGA Imaging, even 2–3 degrees off level creates asymmetric images — one side looks great, the other looks washed out.
Water Flow and Turbulence. Your transducer needs laminar (smooth) water flow across its face. Turbulent water creates air bubbles that block acoustic signals, cavitation noise that overwhelms returns, and intermittent signal dropout at speed. If your sonar works great at idle but falls apart above 15 mph, you have a turbulence problem — not a power problem.
The Bottom Line. I've heard of anglers spending $800 on a 16V lithium battery when their transducer was mounted crooked, too high, and in turbulent water behind a strake. They'd have gotten 10x better results from a $20 transducer bracket adjustment and 30 minutes with a level.
2. Electrical Isolation (This Is the Big One for Power)
The single biggest electrical improvement most anglers can make is isolating electronics power from shared circuits.
Most bass boats run electronics off the starting battery — the same battery powering livewells, bilge pumps, aerators, and navigation lights. Every one of those motors and pumps generates electrical noise when cycling on and off. Livewell pumps can create voltage spikes and EMI.
When you install a dedicated electronics battery — whether it's 12V or 16V — you break that conduction path. This is "conducted" noise, and electrical isolation is the only true physics-based cure (Vexilar, Solving Sonar Interference; Rocket City Outdoors).
This is why people experience genuine improvement after switching to dedicated lithium electronics batteries. It's the isolation, not the voltage. I cover the full wiring strategy in a separate article.
3. Voltage Stability (Not Voltage Level)
Here's a legitimate advantage of lithium over lead-acid, but it's about stability, not the number on the label.
LiFePO4 batteries maintain a notably flat voltage across most of their discharge cycle. Between roughly 20% and 80% state of charge, the voltage on a 12V (4-cell series) LiFePO4 pack barely moves — the cells hover around 3.2–3.3V each (EcoFlow, LiFePO4 Voltage Chart). Lead-acid drops more significantly across the same range — from about 12.7V at full charge to approximately 11.6V at 20% state of charge (Shop Solar Kits, Lead Acid Voltage Chart).
When your lead-acid battery sags to 10.8V under load — right at the minimum spec for Lowrance and Humminbird units — you might experience issues or reboots.
A 16V lithium system provides additional headroom above these minimums — but a 12V lithium provides the same flat discharge curve. You're paying extra for headroom you likely don't need if your electronics are on a dedicated battery.
4. EMI Suppression (Ferrite Cores)
Ferrite cores act as passive low-pass filters that block high-frequency electromagnetic interference from reaching your electronics. Install them on power cables (as close to the fish finder as possible), transducer cables, and Ethernet/NMEA cables.
What to buy: Type 31 ferrite material is effective for broadband EMI suppression across 1–300 MHz — the frequency range where motor and pump interference is most problematic (Palomar Engineers, Ferrite Mix Selection; Fair-Rite, 31 Material Data Sheet). Type 43 material covers a similar upper range (~20–300 MHz) but provides less impedance at lower frequencies (In Compliance Magazine). For general marine electronics noise suppression, Type 31 is the better choice. Pick the right inside diameter for your cable and you can find these on Amazon.
5. Proper Grounding and Cable Routing
Star ground configuration (all grounds to a single point) eliminates ground loops — a common source of interference where current flows through unintended paths in the ground wiring (DigiKey, Ground Loops Explained; Cadence, Star Ground Layout). Keep signal cables separated from high-current wiring. The ABYC E-11 standard covers wire sizing, connections, and voltage drop limits for marine electrical systems — if you're doing a full rewire, it's the reference your marine electrician should be following. These basics cost nothing and prevent interference.
Why the 16V Myth Persists
- Marketing drives it. Lithium battery companies need to differentiate premium products. "Better sonar" is an easy claim that's hard to disprove without engineering knowledge.
- Correlation gets mistaken for causation. Angler upgrades to 16V lithium, installs it properly with new wiring, isolates from shared circuits, adds ferrite cores during install, gets better images. Assumes voltage was the variable. It wasn't.
- Confirmation bias. After spending $400–800 on a battery, your brain wants to justify the purchase.
- It sounds logical. "More power must be better" is intuitive even when it's wrong.
- Nobody's testing it properly. To actually test this, you'd need the same unit, same transducer, same water conditions, powered by 12V vs 16V with identical isolation and wiring quality. Nobody does this because it's boring and proves the null hypothesis.
Section 3: The Science (Technical Documentation and References)
For those who want the engineering receipts, here's the technical foundation.
Internal Voltage Regulation
A published teardown of a Humminbird FishFinder 535 by EE Times revealed the internal architecture common to marine electronics: a Samsung ARM processor with regulated internal voltage rails, with SMPS ICs converting the 12V input to multiple regulated levels. The teardown confirmed a push-pull amplifier with step-up transformer for transducer excitation, producing transmit bursts independent of input voltage (EE Times).
Note: The 535 is an older budget model (~2005 era) using primarily analog signal processing. Modern units like the Helix, SOLIX, and APEX use more sophisticated DSP architectures, but the fundamental power regulation principle — SMPS converting input voltage to fixed internal rails — is identical across all modern consumer and commercial electronics (Analog Devices, AN-140; Analog Devices, SMPS Basics).
Transducer Driver Design
The principle that transmit power is determined by internal circuit design, not input voltage, is well-established in acoustic transducer engineering. A 2021 paper in MDPI Electronics describes optimized sonar transmitter design for driving piezoelectric transducers, focusing on impedance matching and circuit topology as the determinants of delivered acoustic power. The transmitter's output characteristics are a function of its component design — transformer turns ratio, capacitor values, and driver IC specifications — not the upstream battery voltage feeding the regulated power supply. To illustrate: the Garmin GLS 10 LiveScope module delivers 500W of transmit power whether fed 10V or 32V — its entire 10–32V input range.
Commercial Marine Perspective
Furuno, a commercial marine electronics manufacturer with decades of experience in professional fishing and navigation sonar, states in their educational series that fish finders operating on 12–24V DC "function properly anywhere within that range." Furuno also recommends using a separate battery from the engine generator to avoid interference — reinforcing that isolation, not voltage level, is the power-related factor that matters.
Piezoelectric Transducer Physics
Fish finder transducers use piezoelectric ceramic elements (typically PZT — lead zirconate titanate) that convert electrical energy to acoustic pressure waves and vice versa (PiezoDirect, Sonar Applications). The acoustic output is determined by the voltage applied across the piezoelectric element by the internal driver circuit — which, as established above, is generated by a step-up transformer from regulated internal rails, not directly from your battery.
Final Thoughts
The next time someone on social media claims their LiveScope is sharper because they switched to 16V, refer to:
- Section 1 if they just need the quick answer
- Section 2 if they want to understand the engineering
- Section 3 if they need manufacturer specs and technical proof
Here's my honest advice: If you're considering lithium batteries, buy them for the right reasons. Weight savings, cycle life, usable capacity, and voltage stability are all legitimate benefits worth paying for. A dedicated electronics battery — whether 12V or 16V lithium — will improve your experience through proper isolation.
But "better sonar images from higher voltage"? That's marketing, not engineering.

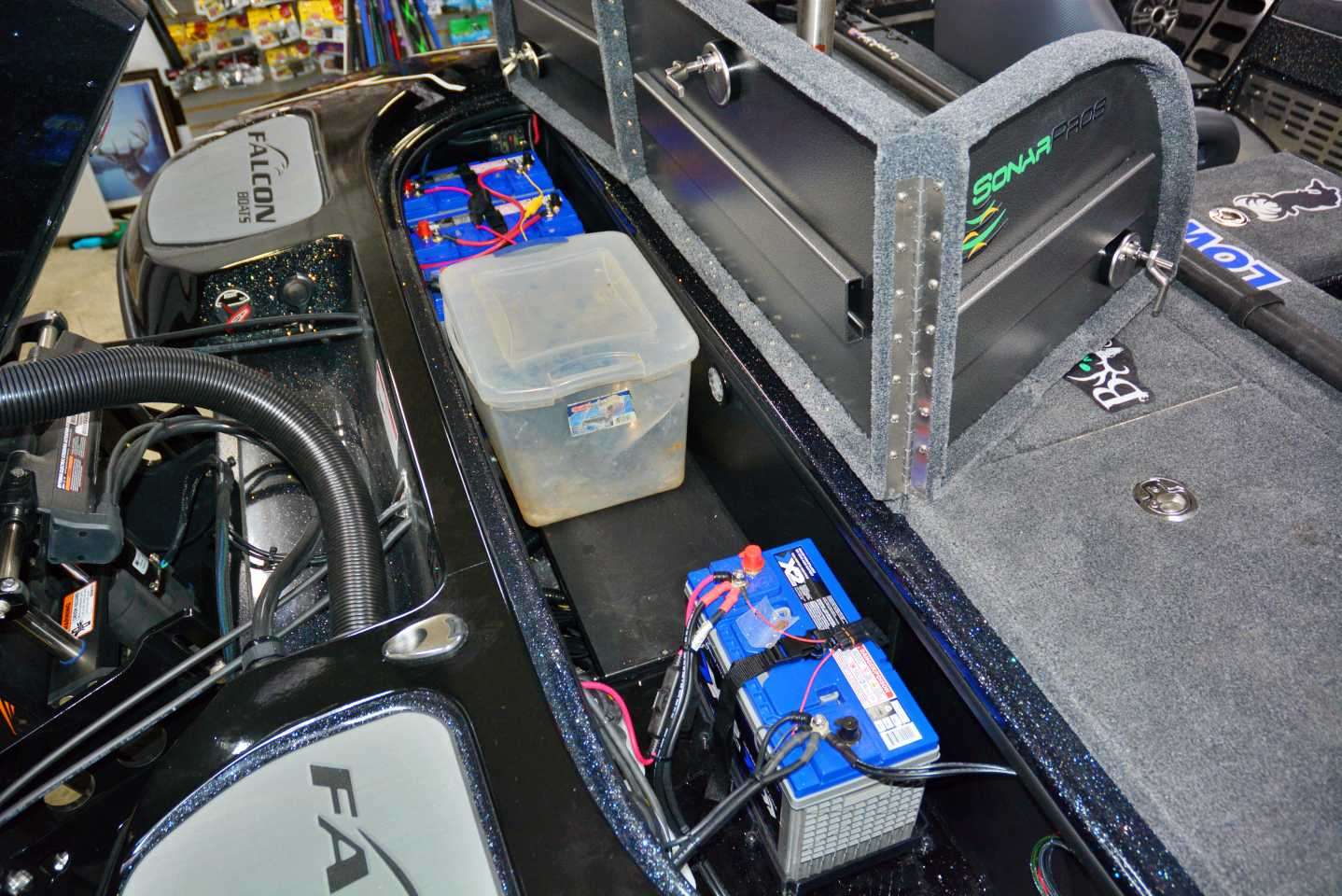

My rig runs three LiFePO4 batteries for the trolling motor (36V system), a dedicated 100Ah LiFePO4 for electronics, and a lead-acid starting battery for the outboard, pumps, and lights. The electronics battery could be 12V or 16V — the image quality would be identical. What matters is that it's dedicated and isolated from the starting battery circuit where pumps and accessories create noise.
If you want to actually improve your sonar performance, focus on:
- Transducer installation — Level, clean water flow, proper depth, correct location (this matters most)
- Electrical isolation — Dedicated electronics power, separate from starting battery and trolling motor
- Proper grounding — Star ground configuration, no ground loops
- EMI suppression — Type 31 ferrite cores on power and transducer cables
- Cable routing — Signal cables separated from high-current wiring
None of those involve chasing higher voltage numbers. Because your fish finder's internal power supply doesn't care about your battery's voltage — it regulates everything anyway.
Fish smarter, not more expensively. And if you're curious whether your sonar is spooking the fish, that's another myth worth busting.
References
- Analog Devices, "AN-140: Basic Concepts of Linear Regulator and Switching Mode Power Supplies." analog.com
- ARM, "Cortex-A55 Core Technical Reference Manual r1p0 — Voltage Domains." developer.arm.com
- EE Times, "Under the Hood Teardown: Humminbird FishFinder — Analog Reels 'Em In," by David Carey. eetimes.com
- Rocket City Outdoors, "Trolling Motor and Marine Electronics EMI/Crosstalk Explained." rocketcityoutdoors.com
- Wikipedia, "Switched-mode power supply." wikipedia.org
- Microchip Technology, "HV732 High-Speed, High-Voltage Ultrasound Pulser IC Datasheet." mouser.com
- Lowrance, "HDS PRO Specifications." lowrance.com
- Lowrance, "ActiveTarget 2 Specifications." lowrance.com
- Garmin, "ECHOMAP Ultra Installation Instructions — Specifications." garmin.com
- Garmin, "LiveScope Plus LVS34 Installation Instructions — GLS 10 Sonar Module Specifications." garmin.com
- Humminbird, "Power Troubleshooting." humminbird-help.johnsonoutdoors.com
- Humminbird, "MEGA Live Imaging Installation Guide (532769-3EN)." johnsonoutdoors.widen.net
- Humminbird, "MEGA 360 Imaging Installation Guide (532684-3EN)." johnsonoutdoors.widen.net
- Furuno, "All About Fish Finders — Topic 14: Power Supply." furuno.com
- Airmar, "In-Hull Transducer Installation Guide (P319 series, 17-006-01)." airmarweb.com
- Vexilar, "Solving Sonar Interference." vexilar.com
- EcoFlow, "Guide to LiFePO4 Voltage Chart." ecoflow.com
- Shop Solar Kits, "Lead Acid Deep Cycle Battery Voltage Chart." shopsolarkits.com
- Palomar Engineers, "Ferrite Mix Selection Guide." palomar-engineers.com
- In Compliance Magazine, "Using Ferrites to Suppress EMI." incompliancemag.com
- DigiKey, "Ground Loops: What They Are and How To Avoid Them." digikey.com
- MDPI Electronics, "Optimized Design of a Sonar Transmitter for the High-Power Control of Multichannel Acoustic Transducers," 2021, Volume 10, Issue 21, Article 2682. mdpi.com
- PiezoDirect, "How Does a Piezo Transducer Work in Sonar Applications?" piezodirect.com
- Portescap, "DC Motors with Electromagnetic Compatibility." portescap.com
- ABYC E-11 AC and DC Electrical Systems on Boats (excerpts). paneltronics.com
- Humminbird, "MEGA Live 2 Installation Guide (532996)." johnsonoutdoors.widen.net
- Humminbird, "Fuse Size, Power Draw, and Power Cable Extension Requirements." humminbird-help.johnsonoutdoors.com
- Humminbird, "MEGA 360 Power Cable Installation." humminbird-help.johnsonoutdoors.com
- Garmin, "Panoptix LiveScope System GLS 10 Product Page." garmin.com
- Fair-Rite Products Corp., "31 Material Data Sheet." fair-rite.com
- Cadence Design Systems, "What is a Star Ground Layout and Why Do You Need It?" cadence.com
- Analog Devices, "Switching Regulator / SMPS Basics." analog.com
